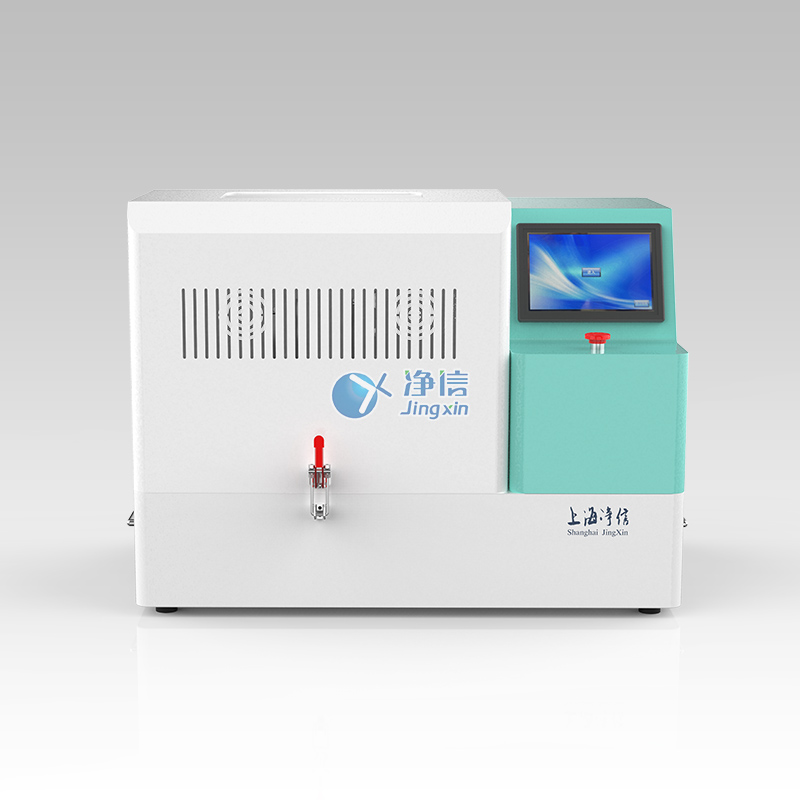

The JX-4GL high-performance ball mill can grind samples to the nanometer level in a short time. This instrument is suitable for grinding (dry or wet) and mixing of soft, medium-hard, extremely hard and brittle samples, and the grinding results are guaranteed. Reproducible. It can be used in pretreatment of physical and chemical analysis, colloid grinding, preparation of new materials and mechanical alloys, etc.
working principle:
When the instrument is started, the motor drives the common sun gear to rotate, and the grinding jar on the sun gear rotates around its own axis. The rotation direction of the grinding jar is exactly opposite to that of the sun gear. The speed ratio of the sun gear to the grinding tank is generally 1:-2.3. When the grinding ball and the grinding jar are running together, they are affected by the superposition of the self-rotation deflection force. Under this influence, the grinding ball releases a large amount of kinetic energy, and the sample is continuously hit by the grinding ball, and at the same time produces a lot of friction with the inner wall of the grinding, which is highly smash.
The main advantages of planetary ball mill:
Suitable for long-term sample preparation and continuous operation
The rotating speed is adjustable, the operation is stable, and the samples can be ground to the fineness of micron level (dry grinding) and nanometer level (wet grinding).
Automatic reverse operation to prevent sample agglomeration
6 different material grinding jars to choose from
Advanced operation interface, simple and convenient
Basic parameters:
The main parameters | Parameter range |
Brand name: | JXFSTPRP Jingxin |
Product name: | Planetary Ball Mill |
Model: | JX-4GL |
Operation method: | LCD liquid crystal touch display |
Maximum injection size (varies in material): | < 10mm |
Discharge size: | < 100nm |
Minimum throughput | 50ml/can |
Maximum throughput: | 4x1500ml |
Main disc speed: | 35-335r/min |
Ball mill rotation speed: | 70-670r/min |
Transmission ratio (planetary disc/ball mill): | 1:2 |
Forward and reverse operation: | Yes |
Continuous running time setting: | 00:01:00-99:59:59 |
Pause time setting: | 00:01:00-99:59:59 |
Dangerous emergency stop: | Yes |
Grinding Room Lighting Description: | LED blue light |
Ball mill carrier material: | Stainless steel, agate, zirconia, corundum, tungsten carbide, polyurethane, etc. are optional |
Vector volume: | 100ml-1500ml |
Ball Milling Media Material: | Stainless steel, agate, zirconia, corundum, nylon, teflon optional |
Media Diameter: | 3/5/10/15/20mm |
Media Quality: | 200-1000g |
Grinding method: | Dry grinding / Wet grinding |
Low temperature cooling treatment: | Yes (additional) |
Inert gas protection treatment: | Yes |
Net weight: | 92kg |
Dimensions (length, width and height): | 720*480*500mm |
Standard: | CE |
Tank ball ratio:
Tank ball ratio: |
|
|
|
Grinding jar | 100ml | 250ml | 1500ml |
Effective volume | 1-50ml | 30-125ml | 240-700ml |
Ball sizes | Number of balls | ||
5mm | 300 | 1200 | 2000 |
10mm | 30 | 50 | 100 |
15mm | 15 | 45 | 70 |
20mm | 8 | 15 | 25 |
30mm |
| 6 | 8 |
40mm |
|
| 4 |
Grinding renderings:
Different processing effects:

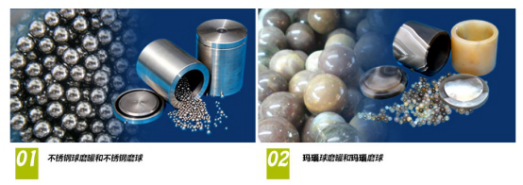

Stainless steel ball mill jar and stainless steel grinding ball
Agate Ball Milling Jar and Agate Milling Ball

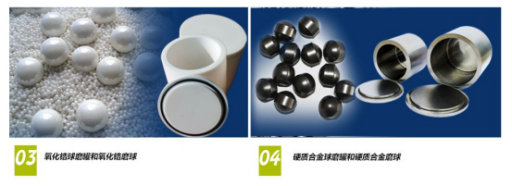

Zirconia ball mill jars and zirconia grinding balls:
Carbide Ball Milling Pot and Carbide Grinding Ball
Polyurethane ball mill jar and agate grinding ball
Nylon ball mill jar and zirconia ball

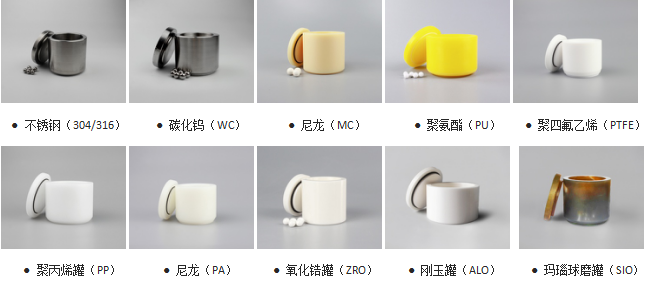

1. Optional material of ball mill jar:
Stainless steel，Tungsten Carbide，Nylon, Polyurethane，Teflon，polypropylene tank，Nylon tank,Zirconia tank，Corundum tank，Agate tank

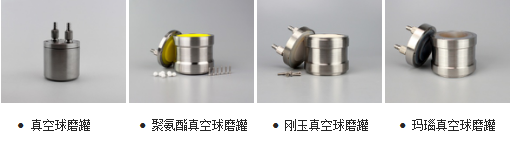

2. Special ball mill tank for vacuum/inert gas protection treatment:
Vacuum ball mill tank,Polyurethane vacuum ball mill tank, Corundum vacuum ball mill tank，Agate vacuum ball mill tank
Optional volume of ball mill carrier: 100ml (requires additional tank pad) / 250ml / 1500ml (standard)

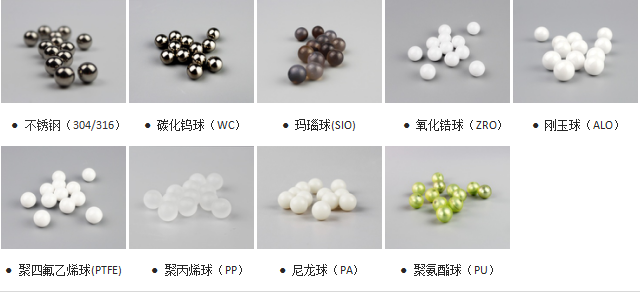

3. Optional materials for ball milling media:
Stainless steel，Tungsten carbide ball，Agate ball,Zirconia balls，Corundum ball，Teflon ball,Polypropylene ball，Nylon ball,Polyurethane ball
Optional diameter of ball milling media: 3 / 5 / 10 / 15 / 20mm
Ball milling media packaging specifications: 200g/can 500 g/can 800 g/can 1000 g/can
