Product Description:
In the physical inspection and chemical analysis of grain quality, such as the analysis and inspection of grain viscosity and nutritional components, the measured samples must be crushed.

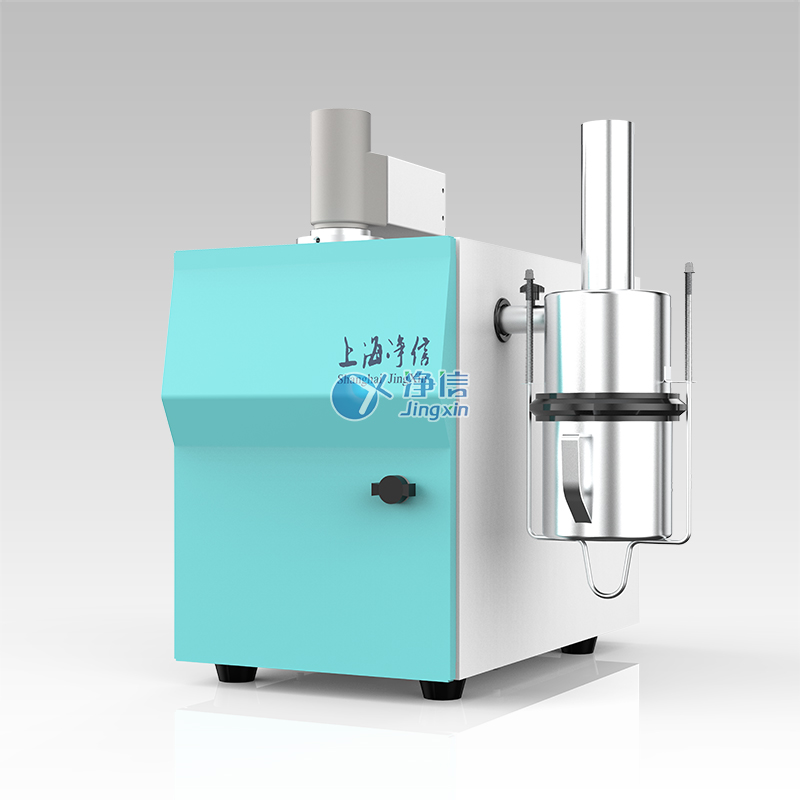

The hammer-type cyclone mill is a kind of crushing equipment with beautiful appearance, compact structure, easy operation, stable operation and durable. This equipment is mainly suitable for the crushing of samples of small and medium grains (water content conforming to national standards) such as wheat and rice in the grain industry. The samples crushed by this machine (samples passing through sieve plates with different apertures) are suitable for the determination of the quantity and quality of gluten, the sample preparation and the measurement and analysis of other fineness requirements such as falling number, near-infrared composition, grain viscosity, etc.
Features:
1. High-speed, high-efficiency, fine and even crushed material. The sample is milled and hammered at a high speed (16800 revolutions/min) into fine uniform powder and then enters the stainless steel integrator with the high-speed airflow through the stainless steel sieve to prepare the sample.
2. The inner wall of the box is glued with domestic excellent sound-absorbing and sound-proof materials, with low noise.
3. The motor is equipped with a temperature protector. Once the motor exceeds the set temperature, it will automatically shut down for protection. After the temperature drops to normal, it can be restarted.
4. The high-speed airflow during sample crushing has a self-cleaning effect, and it is generally not necessary to manually clean the grinder during the sample crushing interval.
5. The crushed samples (samples passing through sieve plates with different apertures) are suitable for sample preparation and measurement and analysis of other fineness requirements such as gluten quantity, quality, falling value, near-infrared composition, and grain viscosity.
6. Irregularly shaped large-particle samples (such as large-grain corn), etc., must be pre-crushed by a laboratory grinding mill or directly fed and crushed.
7. The high-speed airflow in the hammer crushing process will cause the loss of water in the sample. Generally, samples with 10-20% water content will lose 5-10% of the water during the crushing process.
8. Integration of automatic blanking device and host
9. The processing chamber is made of stainless steel liner and can be disassembled and cleaned.
This product is classified as semi-automatic, and the air door needs to be adjusted artificially to control the feeding speed during the crushing process.
technical parameter:
Model | Hammer speed | Grinding cavity diameter | Sieve plate aperture | Low temperature function | Grinding blade |
JXFM110 | 16800r/min | 110mm | 0.5mm/0.8mm/1.5mm | not support | Metal |
JXFM110-II | 16800r/min | 110mm | 0.5mm/0.8mm/1.5mm | 不支持 not support | 金屬 Metal |
JXFM110-CL | 23800r/min (adjustable) | 110mm | 0.5mm/0.8mm/1.5mm | Temperature control device inside the cavity | Metal |
11111
Test items | Sample | Sieve plate aperture (mm) | Sample requirements | ample particle size requirements | ||
Aperture (mm) | Mesh (number of holes/inch) | Sieve number | ||||
Gluten value | wheat | 0.8 | 95% passed | 0.427 | 40 | CQ16 |
Landing value |
Grain | 0.8 | 90% passed | 0.505 | 35 | CQ14 |
Viscosity | food | 0.5 | 90% passed | 0.270 | 60 | CQ24 |
Viscosity | corn | 0.8 | 90% passed | 0.437 | 40 | CQ16 |
Fatty acid value | Rice (paddy) | 0.8 | 95% passed | 0.437 | 40 | CQ16 |
Fatty acid value | food | 0.8 | 90% passed | 0.437 | 40 | CQ16 |
steamed bread | wheat | 0.8 | 60% passed | 0.161 | 91 | CQ36 |
steamed bread | corn | 0.8 | 75% passed | 0.437 | 40 | CQ16 |
