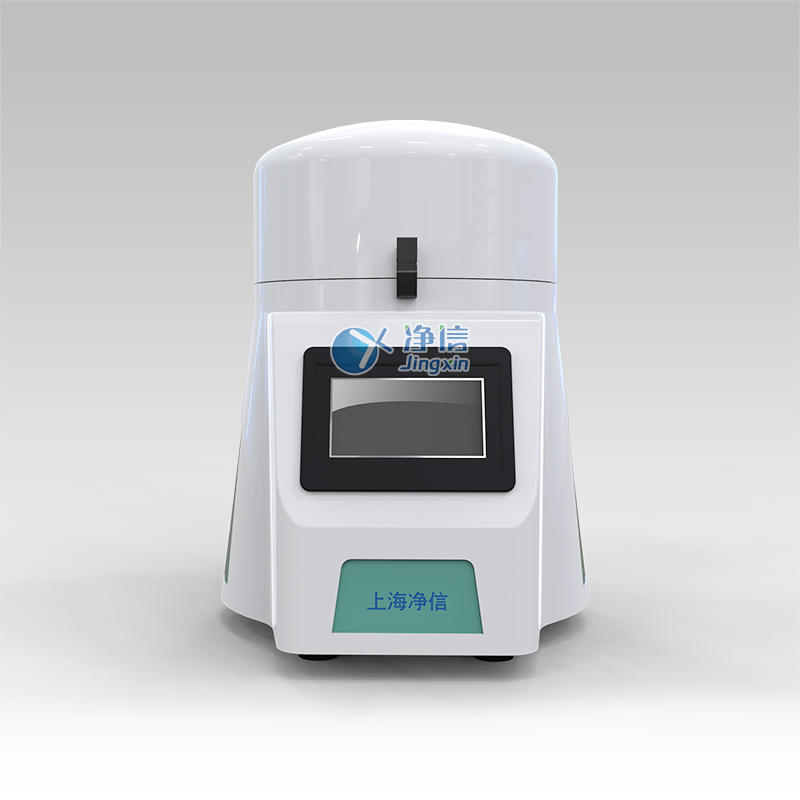

Model：JXFSTPRP-64
Brand：Shanghai Jingxin
Specifications ：Set
Introduction：The product has an inspection certificate issued by an EU-approved testing organization, and meets the three major directives MD2006/42/EC, LVD2014/35/EU, EC2014/30/EU and their standards: ......
Product Description:
Shanghai Jingxin?'s JXFSTPRP? series tissue grinder (patented product, counterfeiting must be punished! ZL2018300207398) is a special, fast, efficient, multi-test tube consistent system. It can extract and purify the original DNA, RNA and protein from any source (including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, etc.).
1. Product name: Fully automatic sample rapid grinder
2. Main purpose:
It is used for sample pre-processing of biological samples, and large-scale automated rapid extraction of genomes.
Main functions and technical indicators:
Main parameters | Parameter range |
Sample processing: | It can handle 64 samples at the same time in 15 seconds, including liquid nitrogen refrigeration adapters that can be used for 12 and 24 positions |
Compatible sample volume: | It can process 64 2ML grinding tubes, 24 5ml grinding tubes, 12 (7-15) ml grinding tubes, and 2 50ML grinding tubes at the same time. Various specifications of grinding tubes can be customized. |
Touch screen display: | Touch screen display, humanized interactive design, convenient operation, convenient and intuitive operation |
Data storage: | Ten groups of experimental data can be stored. According to different experimental samples, animal heart, spleen, lung, kidney, bone, skin, and hair modes are set. |
Mode cycle: | According to the set experimental parameters, it can continuously circulate among several set parameters to further reduce the interference of human factors |
Anti-vibration principle: | The three-dimensional integrated grinding bead movement mode of shaking up and down and left and right ensures the maximization of sample processing and instant crushing effect. |
Feeding size: | No requirement, adjust according to adapter |
Discharge size: | ~5μm |
The number of grinding platforms (the number of grinding tanks that can be accepted) | >2 |
Fastening device with automatic center positioning | Yes, safety lock during work, full protection. |
Homogenization speed and time: | 0—70 HZ/sec, working time: 0 seconds to 9999 minutes, users can set by themselves; |
Speed range: | 1000rpm-7000rpm |
Diameter of grinding ball: | 0.1-30mm |
Grinding ball material: | alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand; |
Acceleration: | reach a greater speed in 2 seconds |
Deceleration: | reach a lower speed in 2 seconds |
Noise level: | <55db |
Refrigeration function: | It has the ability to upgrade to ultra-low temperature liquid nitrogen refrigeration or air refrigerator refrigeration |
Grinding method: | wet grinding, dry grinding and low temperature grinding are all available |
The adapter can be replaced at will. There are fourteen kinds of adapters available for selection, 0.2ml×96 well plate, 2.0ml×24 adapter, 5.0ml×12 adapter, 15ml×8 adapter, 15ml×8 adapter, 25ml×4 adapter, 50ml ×2 adapter, 2.0ml×48 adapter, 5.0ml×24 adapter, 2.0ml×24 freezing adapter (up to -196 degrees), 5.0ml×12 freezing adapter (up to -196 degrees), 15ml×8 freezing adapter ( Up to -196 degrees), 25ml×2 freezer adapters (up to -196 degrees), 50ml×2 freezer adapters (up to -196 degrees), any specifications can be customized. | |
The supporting centrifuge tube opening tool can quickly assist the staff to open the centrifuge tube and avoid contamination. | |
Has a number of patents and provides copies of patent certificates. | |
It is necessary to provide no less than 50 cited papers published on SCI as reference for experimental guidance. | |
It has the ability to be upgraded to ultra-low temperature liquid nitrogen refrigeration or air refrigerator refrigeration. | |
Provide not less than 3 years of instrument warranty. | |
The product has an inspection certificate issued by an EU-approved testing organization, and meets the three major directives MD2006/42/EC, LVD2014/35/EU, EC2014/30/EU and their standards: EN ISO 12100:2010, EN 61010-1:2010, EN 61326-1:2013, EN 61000-3-2:2014, EN 61000-3-3:2013 | |
The after-sales service commitment letter issued by the brand manufacturer is required | |
Fourth, the basic configuration:
4.1. One host. (It can process 64 samples of 2ml at the same time)
4.2. One set of 2ml adapter, one set of 2ml refrigeration adapter, one set of 15ml titanium alloy grinding tank and adapter, one set of 50ml steel tank and adapter.
4.3. One bag of centrifuge tubes.
4.4. A tool for uncovering the centrifuge tube.
4.5. A bead gun.
4.6. One bottle of imported stainless steel grinding beads No. 5 and a bottle of imported stainless steel grinding beads No. 3.
4.7. One bottle of imported ceramic grinding beads No. 5 and one bottle of imported ceramic grinding beads No. 3.
5. After-sales service and training
5.1. The factory is responsible for installation and commissioning;
5.2. After installation and commissioning, the quality guarantee period is 3 years from the day after the user confirms the qualification;
5.3. The maintenance response time is generally 8 hours;
5.4. Responsible for lifelong maintenance;
Six, acceptance
Acceptance according to technical indicators and acceptance procedures.
Seven, delivery location
User laboratory, specifically designated by the end user in the contract.
Eight, Delivery time
Delivery within two weeks after the contract is signed, the specific time is determined by the contract.
